The new operating system for
smart farming.
Agrinodes has developed the most capable, modular and affordable platform that combines irrigation, fertigation, sensors, pump control, safeguards, and live field intelligence into a single coordinated platform — using sensors, valves, pumps, dosing machines that fit your operation, budget and choice.
01 · The Foundation

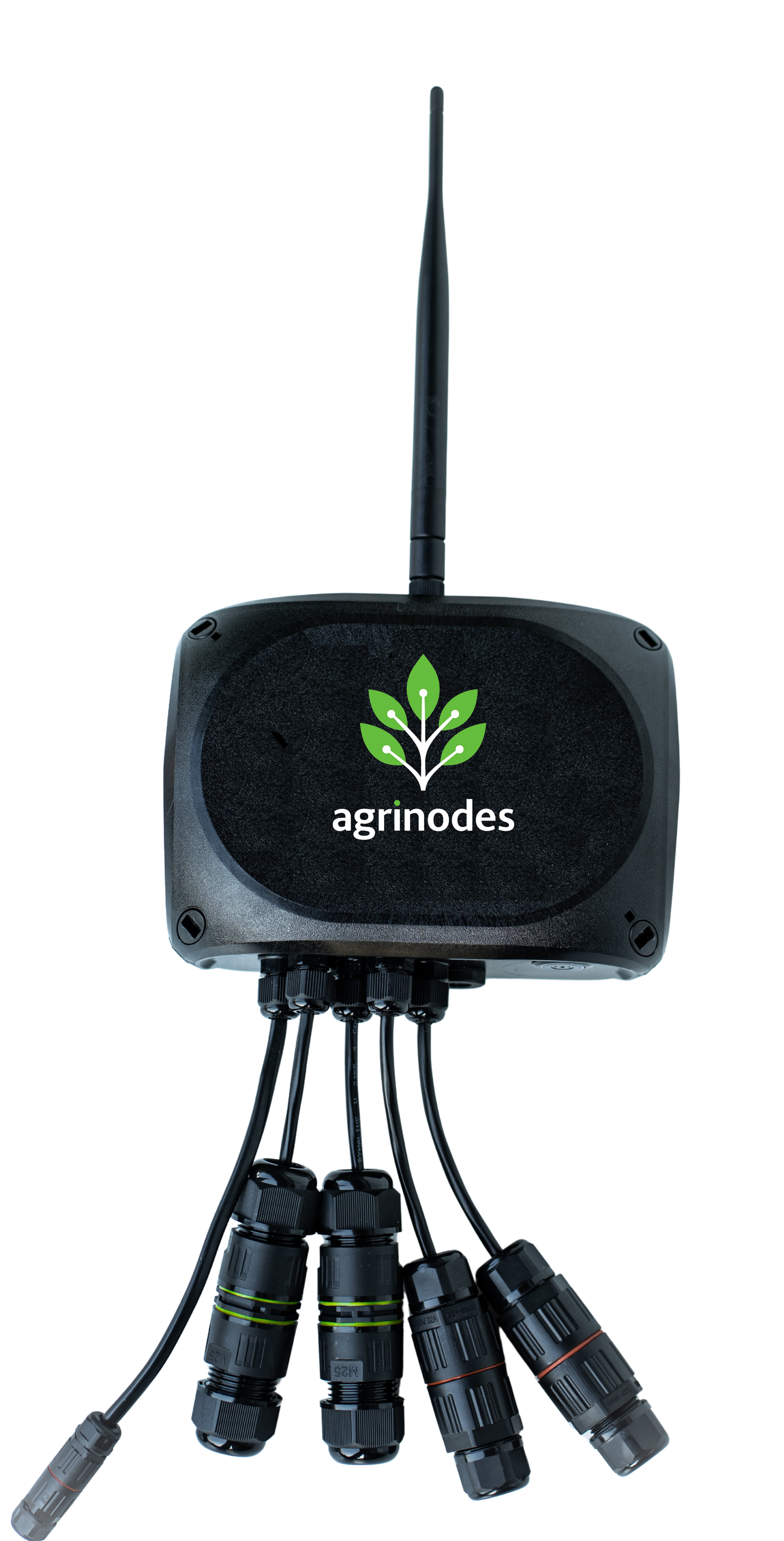

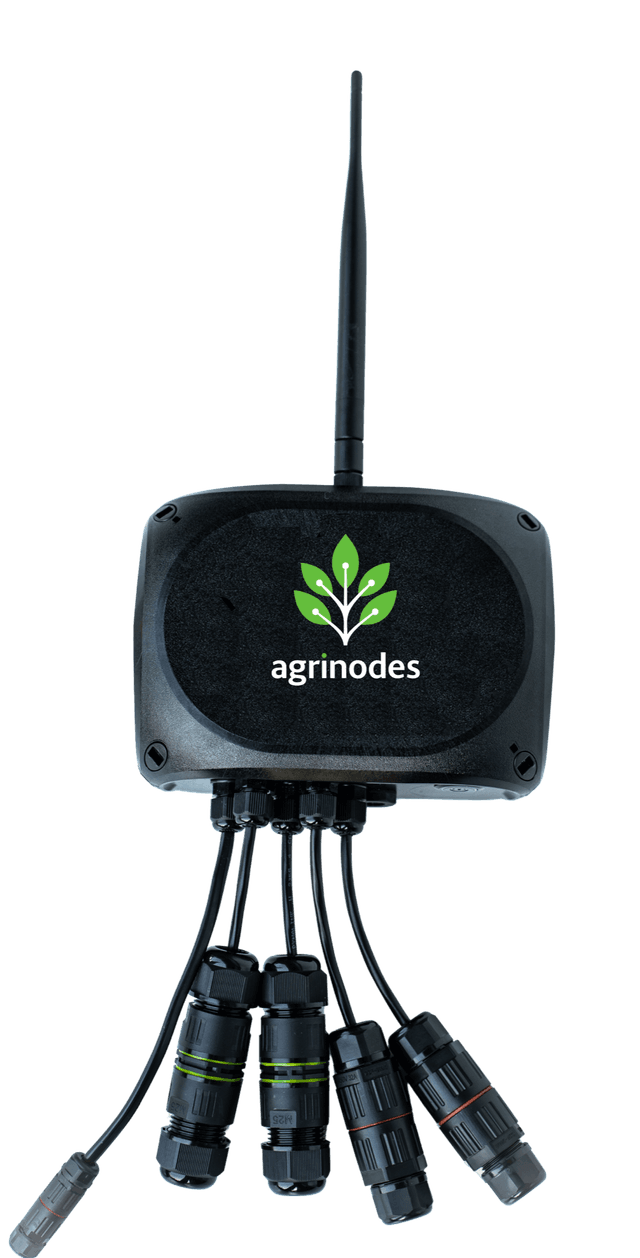

Every Agrinodes farm starts with the Gateway.
The Gateway is the plug-in hub that runs your farm. Connect it to mains power, get it on Wi-Fi, and you can have the plug-in Gateway online in about 30 minutes. Wiring pumps or mains-voltage valves still needs a licensed electrician.
Power, pump, valve, and field connections land on weather-sealed external connectors, so most setup happens without opening the enclosure in the weather.
- 7
- Valve outputs
- 1
- Pump output
- 12
- Sensor channels
- 99
- Nodes across field network
- WiFi internet
- GPO powered
Pump and mains-voltage wiring should be installed by a licensed electrician even though normal field connections stay outside the enclosure.
02 · BYO Hardware
Connect what you want.
Agrinodes works with compatible solenoid valves, relay- and contactor-controlled pumps, and sensors through supported electrical interfaces. Bring equipment you already trust, or source new gear that fits your budget and your blocks. Start simple. Add precision where it pays.
Valves
Solenoid valves you choose
Direct-wire compatible solenoid valves. Use the ones already on your farm, or source new ones — same setup either way.
Learn about valve compatibilitySensors
12 sensor channels
Bring soil, water, climate, EC, flow, pressure, rain, and wind sensors when their output matches a supported interface:
- Analog voltage
- 4-20 mA current loop
- SDI-12
- Modbus over RS485
- CH12 0-12 V voltage-output pulse
CH12 pulse support is for selected 0-12 V voltage-output sensors only. Passive reed-switch, contact-closure, NPN, open-collector, and generic raw pulse meters are not supported on this hardware profile.
Pump
Motor pump control
Drive mains AC pumps through a contactor, send enable/start signals to a VFD, or switch solar / DC pumps through a contactor — direct from the Gateway.
Pump and mains-voltage wiring should be installed by a licensed electrician.
See supported pump types03 · Irrigation & Fertigation
Now your farm can act.
With valves and a pump connected, your Gateway can run irrigation. Build Programs that coordinate pump startup, valve sequencing, waits, and cleanup around each step. Trigger one-off runs when conditions demand it. Add fertigation once your dosing equipment and stock tanks are in place.
See how irrigation worksPrograms
Repeatable irrigation plans across your zones, executed with full water-path choreography.
Quick Run
One-step, immediate irrigation outside the regular Program.
Custom Run
Multi-step, one-off irrigation sequences for today's conditions.
Fertigation recipes
Sequenced dosing through compatible fertigation devices, with sensor-backed verification.
Optional add-on
Fertigation is an optional paid feature at $69/month per enabled farm. Verification depends on the dosing and sensing equipment you have installed.
04 · Monitoring & Safeguards
Now your farm can see and protect itself.
With sensors connected, the Gateway sees what's happening across your farm in real time. Set thresholds and your farm can help protect itself when configured — closing valves, stopping pumps, and logging incidents when something drifts. Whether the run started from a Program, a Quick Run, or a Custom Run, the same safeguards apply.
Safeguards
Grower-configured thresholds that trigger automatic Action Plans.
Safeguard Incidents
Every triggered event logged with what happened, when, and what action was taken.
Fertigation Verification
Sensor-backed answers to the questions that matter on the ground.
Push Notifications
Incidents in the app and mobile push notifications when something needs your attention.
Pump and Valve Safety
Interlocks, single-pump enforcement, and convergence between Programs, manual runs, and safeguards.
Fertigation Verification
The questions that matter to a grower, answered by the sensors and telemetry installed on the farm:
- Did water flow?
- Did dosing happen?
- Was pressure in range?
- Is there enough stock left?
05 · Nodes & Coverage
Expand with the Node variant that fits the job.
Every farm starts with one Gateway, then you add Nodes based on what each area needs. Choose Node Solar for extra reach into remote blocks, or Node Mains for a powered remote control point at a shed, booster, fertigation area, or secondary mainline. A single Gateway supports up to 99 Nodes across the field network.
Node Solar
Use Node Solar when you need more field reach.
Solar-powered and battery-backed, Node Solar extends the Agrinodes field network deeper into the farm. It is the right fit for remote blocks, rows, and sensor points where you want more range without bringing mains power out to the field.
Gateway · Pump Shed
Node · North BlockNode · Greenhouse 2Node · East PaddockNode · Greenhouse 3Node · West BlockNode · DamNode · Tank FarmNode · OrchardNode · Remote ridge1 Gateway + 2 Nodes
Small farm or a single remote block.
Hardware
$2,750.00
Gateway Mains: $950.00 ex GST
Node Solar ×2: $1,800.00 ex GST
Software
$29.00/month for 3 devices.
1 Gateway + 5 Nodes
Mid-size operation with multiple control points.
Hardware
$5,450.00
Gateway Mains: $950.00 ex GST
Node Solar ×5: $4,500.00 ex GST
Software
$49.00/month for 6 devices.
1 Gateway + 10 Nodes
Larger multi-block rollout across the same field network.
Hardware
$9,950.00
Gateway Mains: $950.00 ex GST
Node Solar ×10: $9,000.00 ex GST
Software
$69.00/month for 11 devices.
Monthly Subscription
Includes cloud platform, mobile app, unlimited data, and standard support from the Agrinodes team.
| Fleet Size | Monthly Cost |
|---|---|
| 1–5 devices | $29.00 |
| 6–10 devices | $49.00 |
Optional add-on
Fertigation Core is optional and billed separately at $69/month when enabled.
06 · Trial
Try it on your farm. Keep it or return it.
Pay a fully refundable deposit and we'll ship you a Gateway. Set up your first Gateway in the app to start the 14-day trial, connect your own sensors and valves, and run the system on your farm.
Control valves remotely, see live readings, automate irrigation and fertigation programs, test safeguards and alerts, and evaluate how it performs in real conditions. Fertigation Core is included during the trial where your installed hardware supports it.
If it's not the right fit, return the Gateway in original condition under the trial terms using the prepaid Express return label and receive your full deposit back. If it is, your trial deposit is credited toward the Gateway and you continue with a monthly, no-lock-in subscription.
Need more than one unit for evaluation? Ask us about an assisted multi-unit trial. Those extra units are arranged internally, outbound shipping is charged to you, and if you do not convert, you organise return shipping to receive the refundable deposit back.
Fully refundable trial deposit
DAY
Standard 1x Gateway trial includes the prepaid return label.
